Wholesale sanitation street sweeper manufacturersChina,School sweeper
Fujian Ronggong RG-8240 road sweeper is an articulated chassis, multi-functional road sweeper. The machine adopts the cab with panoramic glass structure, adopts aluminum alloy material recovery box, is equipped with heating and cooling air conditioner, and the cleaning method is suction sweeping type; it is equipped with Platinum 404D-22 diesel engine; walking drive, steering system, fan drive, The driving of the sweeping brush and the lifting of the dustbin adopt advanced hydraulic technology; the articulated steering and the speed of the sweeping brush are controlled by a single output of the throttle valve, which can be adjusted steplessly according to the actual road conditions of the road cleaning; the suction system adopts a double-circulation airflow blowback mechanism, It can improve the cleaning efficiency of the road sweeper; the position of the cleaning brush and the suction pipe are equipped with a water spray device to ensure that dust will not be generated during cleaning operations and cause secondary pollution; the cleaning width of the sweeping brush of this machine is 1.6-2.4 meters, which is widely used in cities Cleaning operations in non-motor vehicle lanes, city squares, parks, stadiums, convention centers and other places.
Keywords: multifunctional road sweeper
Category:
other
- Performance
- Technical
-
- Commodity name: Wholesale sanitation street sweeper manufacturersChina,School sweeper
Fujian Ronggong RG-8240 road sweeper is an articulated chassis, multi-functional road sweeper. The machine adopts the cab with panoramic glass structure, adopts aluminum alloy material recovery box, is equipped with heating and cooling air conditioner, and the cleaning method is suction sweeping type; it is equipped with Platinum 404D-22 diesel engine; walking drive, steering system, fan drive, The driving of the sweeping brush and the lifting of the dustbin adopt advanced hydraulic technology; the articulated steering and the speed of the sweeping brush are controlled by a single output of the throttle valve, which can be adjusted steplessly according to the actual road conditions of the road cleaning; the suction system adopts a double-circulation airflow blowback mechanism, It can improve the cleaning efficiency of the road sweeper; the position of the cleaning brush and the suction pipe are equipped with a water spray device to ensure that dust will not be generated during cleaning operations and cause secondary pollution; the cleaning width of the sweeping brush of this machine is 1.6-2.4 meters, which is widely used in cities Cleaning operations in non-motor vehicle lanes, city squares, parks, stadiums, convention centers and other places.

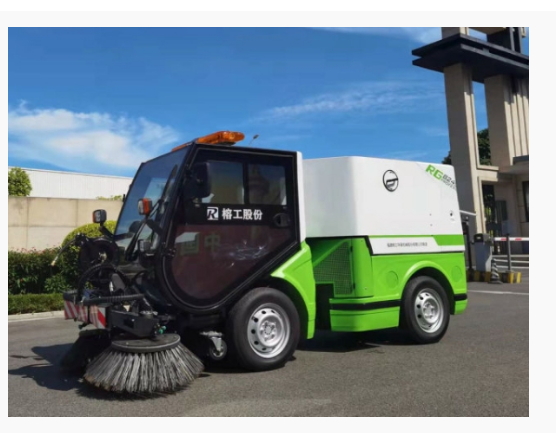

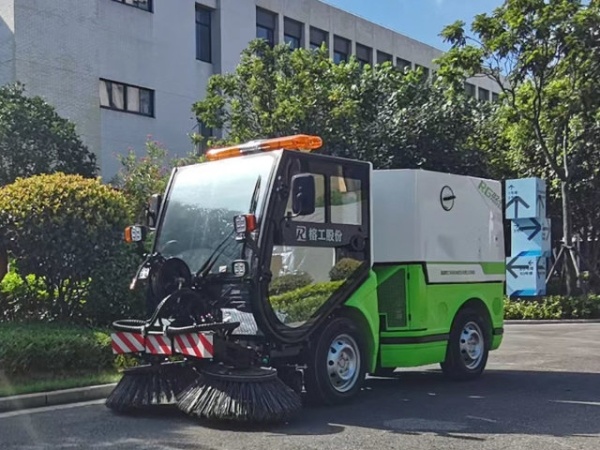

Fujian Ronggong RG-8240: Articulated, multi-functional road sweeper with panoramic cab, aluminum recovery box, and suction sweeping
Fujian Ronggong RG-8240 Multifunctional Road Sweeper features an articulated chassis, multifunctionality, panoramic cab, aluminum recovery box, air conditioning, suction sweeping, Platinum 404D-22 diesel engine, advanced hydraulics, adjustable brush speed, double-circulation airflow, water spray device, and 1.6-2.4 meter cleaning width. Ideal for urban and public spaces.
▶ Articulated Chassis and Multi-Functionality: Designed for flexibility and multiple cleaning functions, ideal for various environments.
▶ Panoramic Glass Cab: Provides a wide, unobstructed view for the operator, enhancing safety and operational efficiency.
▶ Aluminum Alloy Recovery Box: Lightweight yet durable, contributing to the overall efficiency and longevity of the machine.
▶ Heating and Cooling Air Conditioner: Ensures a comfortable working environment for the operator in all weather conditions.
▶ Suction Sweeping Method: Efficient cleaning mechanism that combines suction and sweeping for thorough debris removal.
▶ Platinum 404D-22 Diesel Engine: Reliable and powerful engine providing robust performance for demanding cleaning tasks.
▶ Advanced Hydraulic Technology: Used in the drive, steering system, fan drive, sweeping brush drive, and dustbin lifting, ensuring smooth and efficient operation.
▶ Adjustable Sweeping Brush Speed: Steplessly adjustable throttle valve allows for precise control based on road conditions.
▶ Double-Circulation Airflow Blowback Mechanism: Enhances the suction system’s efficiency, leading to better cleaning performance.
▶ Water Spray Device: Positioned on the cleaning brush and suction pipe to prevent dust generation and secondary pollution during operations.
▶ Wide Cleaning Width: Sweeping brush width ranges from 1.6 to 2.4 meters, suitable for diverse cleaning tasks in urban areas.
▶ Versatile Application: Perfect for cleaning non-motor vehicle lanes, city squares, parks, stadiums, convention centers, and other public places.
Multifunctional Road Sweeper Main Functions

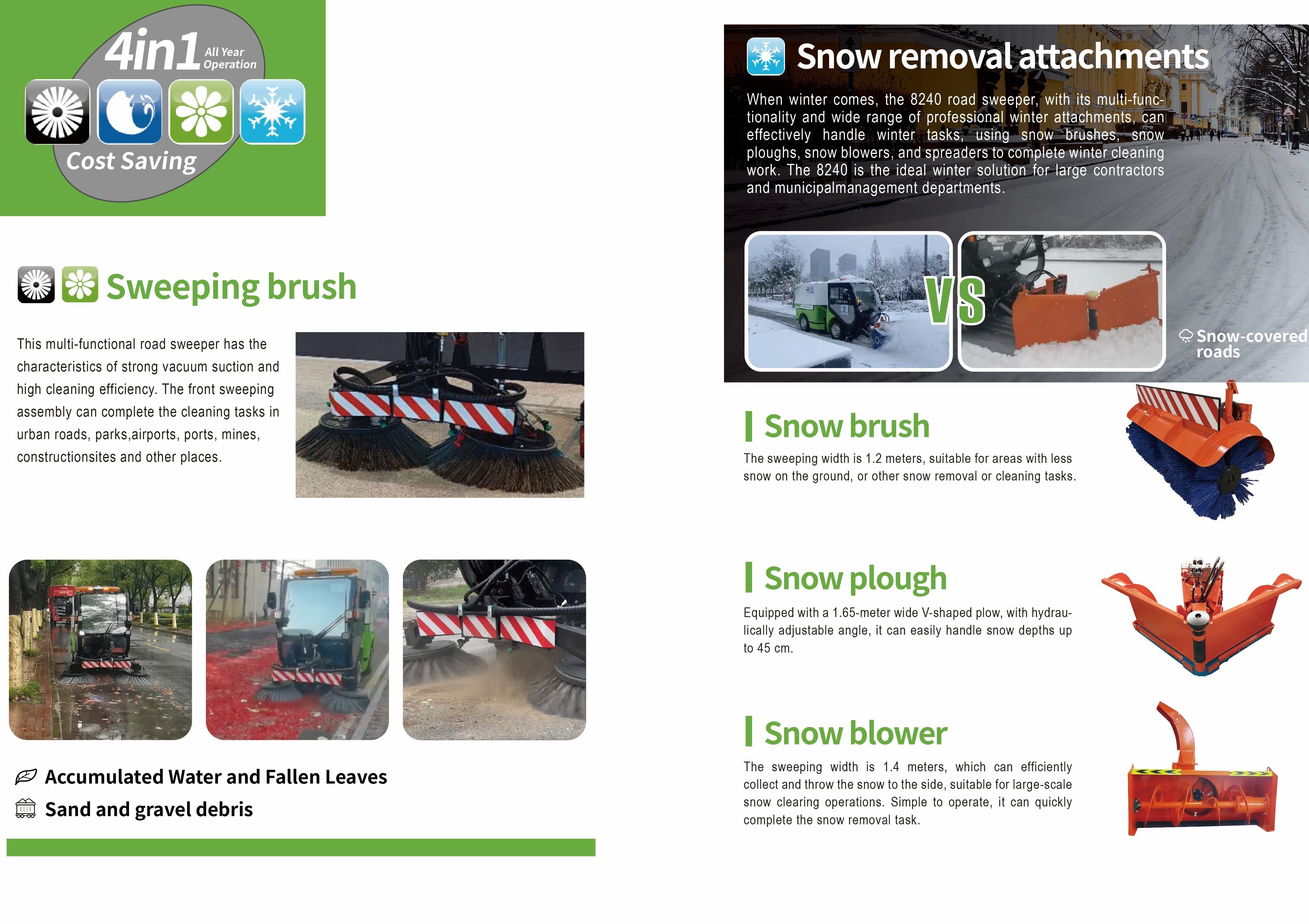

✔ Quick Snow Removal: Features quick replacement for snow shovels and rollers for efficient snow clearing.

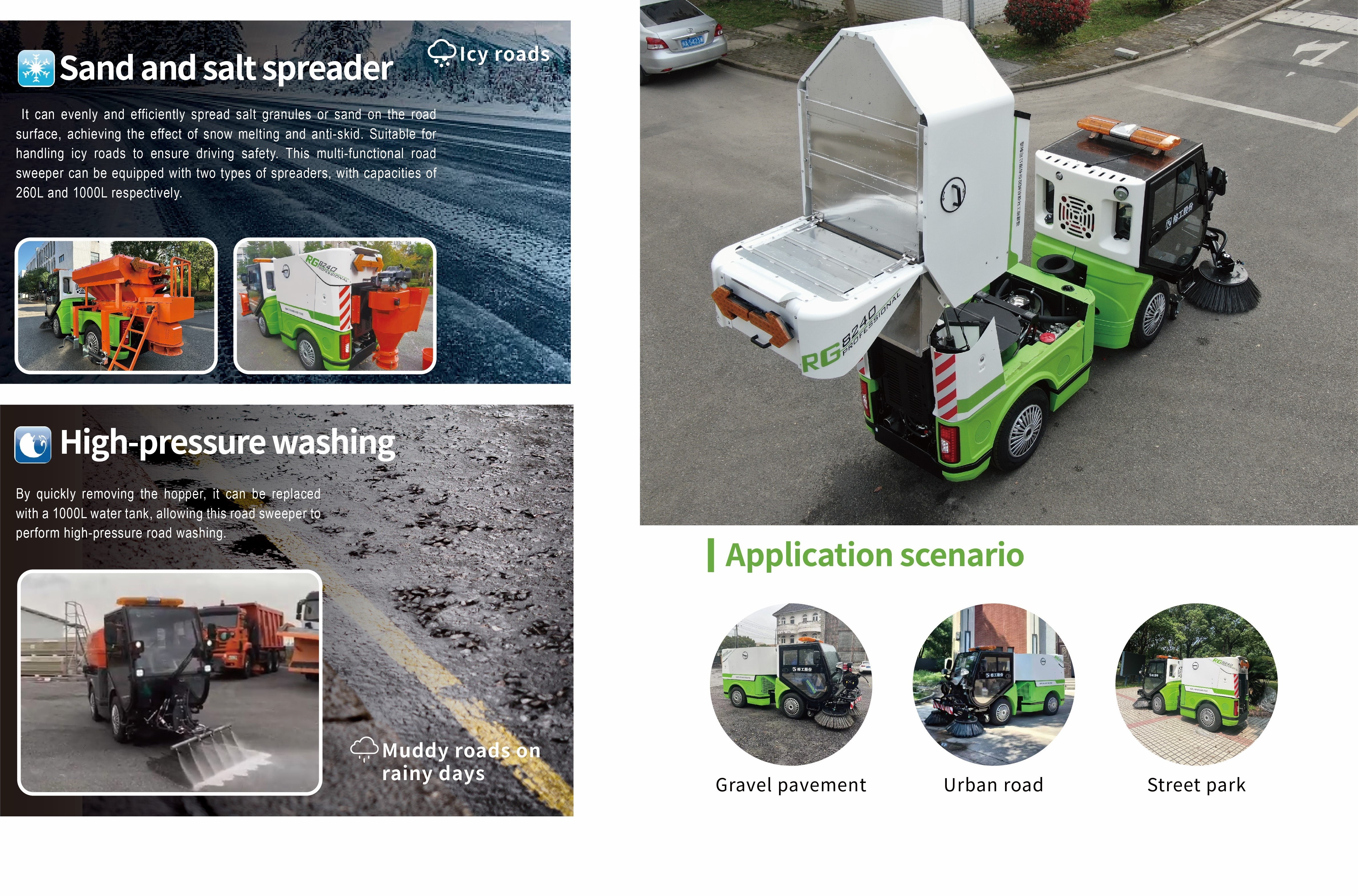

✔ High-Pressure Flushing: Includes a high-pressure system for self-cleaning, dirt flushing, and landscaping spraying.
✔ Handheld Suction Hose: Equipped with a handheld hose to clean hard-to-reach areas like green belts and sinkholes.
✔ Multi-Functional: Designed for various tasks including road sweeping, snow removal, and high-pressure flushing.
✔ Versatile Cleaning: Suction sweeping with water spray ensures dust-free operations and secondary pollution prevention.Rg-8240 Multifunctional Road Sweepe Function
✔ Dual Seats: Cab with dual seats allows convenient teamwork for two operators.
✔ Electronic Control Start: Simplifies operation with an easy-to-use electronic control start system.
✔ Integrated Steering Gear: Combines all display instruments, warning lights, and control buttons for streamlined operation.
✔ Ergonomic Control Panel: Functional operation switches designed for easy and fast operation based on ergonomics.
✔ Safety Features: High-definition reverse image for safety assurance and warning lights to alert passersby; one-click air intake baffle operation for debris of various sizes.
-
Main Technical Parameters Of Rg-8240 Multi-Function Road Sweeper
Size Parameter
- Dimensions: (including brush) 4285×1400×2040mm
- Without brush, without warning light: 4070×1240×1880(Length × Width × Height)
- Wheelbase front/rear: 920mm
- Wheelbase: 2040mm
- Minimum ground clearance : 200mm
- Maximum cleaning width: 2400mm
- Bin capacity: 1.5m³
Quality Parameters
- Curb weight: 2370kg
- Front axle no-load load: 1320kg
- Rear axle no-load load: 1050kg
- Maximum gross mass: 3100kg
Performance Parameters
- Maximum cleaning width: 2.4m
- Working speed: 8-12Km/h
- Maximum travel speed: 26km/h
- Maximum cleaning capacity: 28800m²/h
- Cleaning efficiency: 96%
Driving Parameters
- Drive form: hydraulic four-wheel drive
- Tire Model: 195/75R16
- Number of tires: 4
- Tire pressure: 0.46MPa
- Wheel nut torque: 124~165Nm
Engine Parameters
- Brand: Perkins Perkins (four cylinder)
- Engine Model: 404D-22
- Engine displacement: 2.216L
- Rated power/speed: 35.7kW/2600rpm
- Engine working speed: 1600rpm
- Fuel type: 0# light diesel oil
- Standard: EU Standard EC Stage ⅢA
Steering System
- Steering Form: Articulated Body Steering
- Steering Gear Type: Full Hydraulic Steering Gear
- Steering mechanism form: The front and rear frames are articulated and connected to the steering cylinder to push
Hydraulic System
- Hydraulic oil grade: Texaco Rando HDZ 46
- Hydraulic Fluid Cleanliness: NAS9
- Hydraulic tank capacity: 60L
Electrical Systems
- Composition: road sweeper driving system circuit and control system circuit
- System Voltage: 12V
- Battery capacity: 80AH
Cleaning System
- Form: Two disc-shaped brushes are symmetrically arranged in front of the machine
- Brush disc diameter: 850mm
- Each group contains 14 steel wires and 12 nylon brush wires, each with a length of 630; 30 groups per circle
Suction System
- Straw length: 4200mm
- Straw Inner Diameter: 180mm
High-pressure Water Gun
- Maximum water pressure: 140bar
- Flow rate: 8.3L/min
Hose Reels
- Hose Length: 10m
Snow Pusher (optional)
- Height mm: 780
- Width mm: 1350-1650
- Left turn angle: 70°
- Right turn angle: 70°
Snow Brushes (optional)
- Width mm: 1100
- Diameter mm: 565
- Left turn angle: 56°
- Right turn angle: 56°
- Speed r/min: 280
