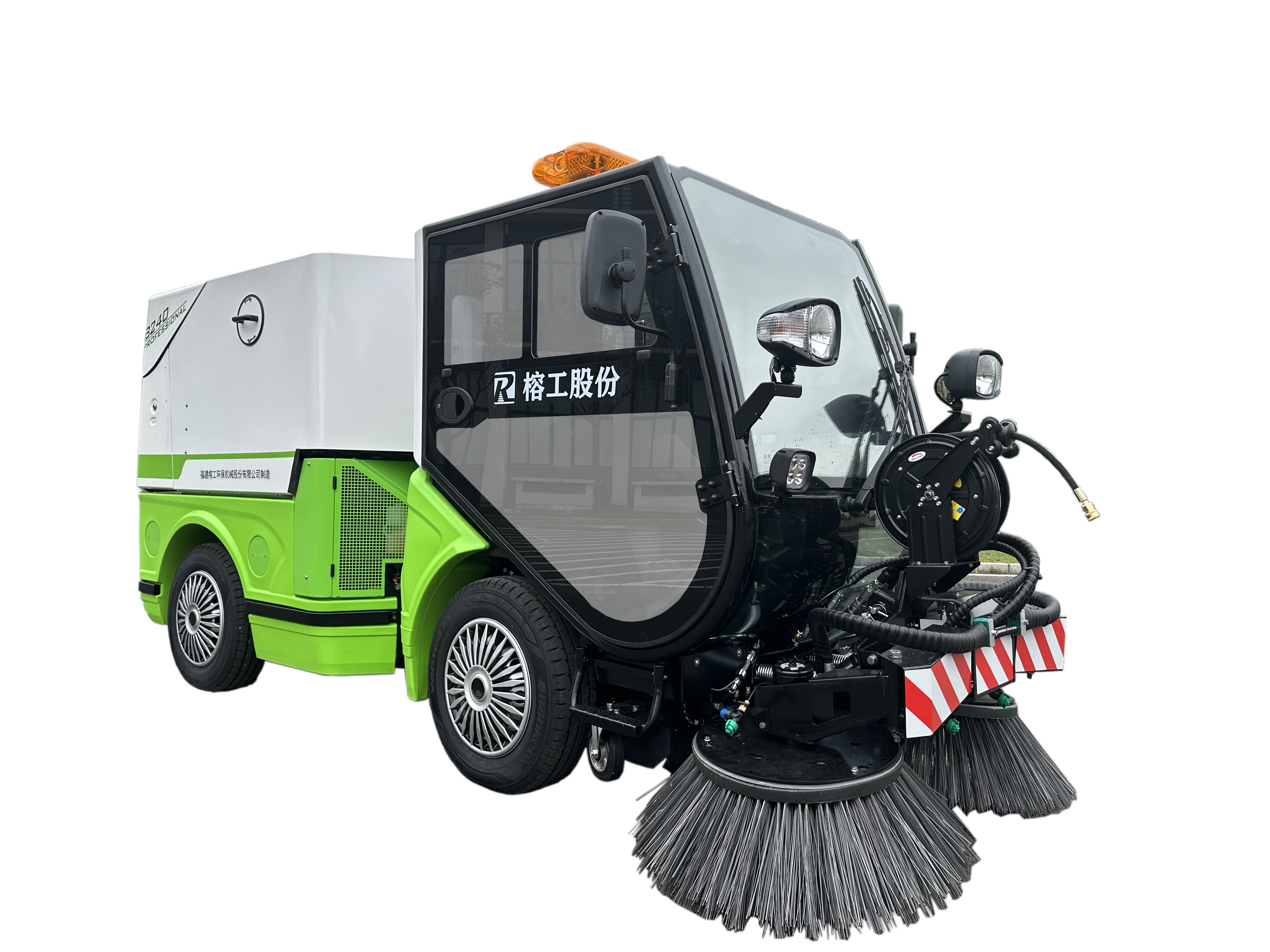

RG-8240 Multifunctional Road Sweeper
Fujian Ronggong RG-8240 Multifunctional Road Sweeper features an articulated chassis, multifunctionality, panoramic cab, aluminum recovery box, air conditioning, suction sweeping, Platinum 404D-22 diesel engine, advanced hydraulics, adjustable brush speed, double-circulation airflow, water spray device, and 1.6-2.4 meter cleaning width. Ideal for urban and public spaces.
Keywords: multifunctional road sweeper
Category:
Cleaning Equipment
- Performance
- Technical
-
- Commodity name: RG-8240 Multifunctional Road Sweeper
Fujian Ronggong RG-8240 Multifunctional Road Sweeper features an articulated chassis, multifunctionality, panoramic cab, aluminum recovery box, air conditioning, suction sweeping, Platinum 404D-22 diesel engine, advanced hydraulics, adjustable brush speed, double-circulation airflow, water spray device, and 1.6-2.4 meter cleaning width. Ideal for urban and public spaces.
Fujian Ronggong RG-8240: Articulated, multi-functional road sweeper with panoramic cab, aluminum recovery box, and suction sweeping
Fujian Ronggong RG-8240 Multifunctional Road Sweeper features an articulated chassis, multifunctionality, panoramic cab, aluminum recovery box, air conditioning, suction sweeping, Platinum 404D-22 diesel engine, advanced hydraulics, adjustable brush speed, double-circulation airflow, water spray device, and 1.6-2.4 meter cleaning width. Ideal for urban and public spaces.
▶ Articulated Chassis and Multi-Functionality: Designed for flexibility and multiple cleaning functions, ideal for various environments.
▶ Panoramic Glass Cab: Provides a wide, unobstructed view for the operator, enhancing safety and operational efficiency.
▶ Aluminum Alloy Recovery Box: Lightweight yet durable, contributing to the overall efficiency and longevity of the machine.
▶ Heating and Cooling Air Conditioner: Ensures a comfortable working environment for the operator in all weather conditions.
▶ Suction Sweeping Method: Efficient cleaning mechanism that combines suction and sweeping for thorough debris removal.
▶ Platinum 404D-22 Diesel Engine: Reliable and powerful engine providing robust performance for demanding cleaning tasks.
▶ Advanced Hydraulic Technology: Used in the drive, steering system, fan drive, sweeping brush drive, and dustbin lifting, ensuring smooth and efficient operation.
▶ Adjustable Sweeping Brush Speed: Steplessly adjustable throttle valve allows for precise control based on road conditions.
▶ Double-Circulation Airflow Blowback Mechanism: Enhances the suction system’s efficiency, leading to better cleaning performance.
▶ Water Spray Device: Positioned on the cleaning brush and suction pipe to prevent dust generation and secondary pollution during operations.
▶ Wide Cleaning Width: Sweeping brush width ranges from 1.6 to 2.4 meters, suitable for diverse cleaning tasks in urban areas.
▶ Versatile Application: Perfect for cleaning non-motor vehicle lanes, city squares, parks, stadiums, convention centers, and other public places.
Multifunctional Road Sweeper Main Functions
✔ Quick Snow Removal: Features quick replacement for snow shovels and rollers for efficient snow clearing.
✔ High-Pressure Flushing: Includes a high-pressure system for self-cleaning, dirt flushing, and landscaping spraying.
✔ Handheld Suction Hose: Equipped with a handheld hose to clean hard-to-reach areas like green belts and sinkholes.
✔ Multi-Functional: Designed for various tasks including road sweeping, snow removal, and high-pressure flushing.
✔ Versatile Cleaning: Suction sweeping with water spray ensures dust-free operations and secondary pollution prevention.Rg-8240 Multifunctional Road Sweepe Function
✔ Dual Seats: Cab with dual seats allows convenient teamwork for two operators.
✔ Electronic Control Start: Simplifies operation with an easy-to-use electronic control start system.
✔ Integrated Steering Gear: Combines all display instruments, warning lights, and control buttons for streamlined operation.
✔ Ergonomic Control Panel: Functional operation switches designed for easy and fast operation based on ergonomics.
✔ Safety Features: High-definition reverse image for safety assurance and warning lights to alert passersby; one-click air intake baffle operation for debris of various sizes.
-
Main Technical Parameters Of Rg-8240 Multi-Function Road Sweeper
Size Parameter
- Dimensions: (including brush) 4285×1400×2040mm
- Without brush, without warning light: 4070×1240×1880(Length × Width × Height)
- Wheelbase front/rear: 920mm
- Wheelbase: 2040mm
- Minimum ground clearance : 200mm
- Maximum cleaning width: 2400mm
- Bin capacity: 1.5m³
Quality Parameters
- Curb weight: 2370kg
- Front axle no-load load: 1320kg
- Rear axle no-load load: 1050kg
- Maximum gross mass: 3100kg
Performance Parameters
- Maximum cleaning width: 2.4m
- Working speed: 8-12Km/h
- Maximum travel speed: 26km/h
- Maximum cleaning capacity: 28800m²/h
- Cleaning efficiency: 96%
Driving Parameters
- Drive form: hydraulic four-wheel drive
- Tire Model: 195/75R16
- Number of tires: 4
- Tire pressure: 0.46MPa
- Wheel nut torque: 124~165Nm
Engine Parameters
- Brand: Perkins Perkins (four cylinder)
- Engine Model: 404D-22
- Engine displacement: 2.216L
- Rated power/speed: 35.7kW/2600rpm
- Engine working speed: 1600rpm
- Fuel type: 0# light diesel oil
- Standard: EU Standard EC Stage ⅢA
Steering System
- Steering Form: Articulated Body Steering
- Steering Gear Type: Full Hydraulic Steering Gear
- Steering mechanism form: The front and rear frames are articulated and connected to the steering cylinder to push
Hydraulic System
- Hydraulic oil grade: Texaco Rando HDZ 46
- Hydraulic Fluid Cleanliness: NAS9
- Hydraulic tank capacity: 60L
Electrical Systems
- Composition: road sweeper driving system circuit and control system circuit
- System Voltage: 12V
- Battery capacity: 80AH
Cleaning System
- Form: Two disc-shaped brushes are symmetrically arranged in front of the machine
- Brush disc diameter: 850mm
- Each group contains 14 steel wires and 12 nylon brush wires, each with a length of 630; 30 groups per circle
Suction System
- Straw length: 4200mm
- Straw Inner Diameter: 180mm
High-pressure Water Gun
- Maximum water pressure: 140bar
- Flow rate: 8.3L/min
Hose Reels
- Hose Length: 10m
Snow Pusher (optional)
- Height mm: 780
- Width mm: 1350-1650
- Left turn angle: 70°
- Right turn angle: 70°
Snow Brushes (optional)
- Width mm: 1100
- Diameter mm: 565
- Left turn angle: 56°
- Right turn angle: 56°
- Speed r/min: 280
